Stonex GNSS receiver’s and bundled RTK packages with tablet and software

To download Stonex’s  latest 2024 catalogue please click

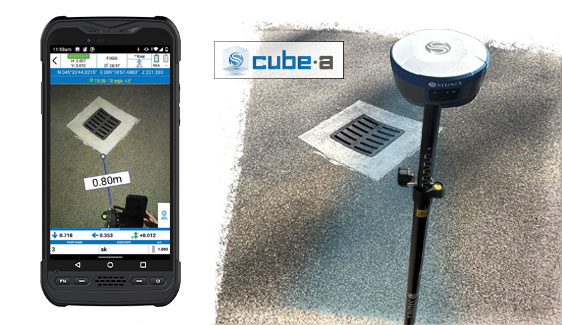

All receivers can be bundled with a tough android tablet loaded with an easy to use Survey App called CubeA.
To watch video tutorials on the use of  CubeA click Here. CubeA can be sold separately for $500 exGST.
A complete Base and Rover RTK system is available for $26,500 exGST. The S980A with its 5 watt UHF radio is the base station and the robust S850A is the roving receiver.

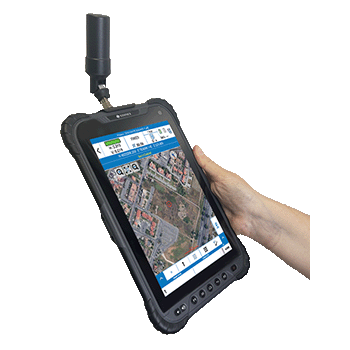

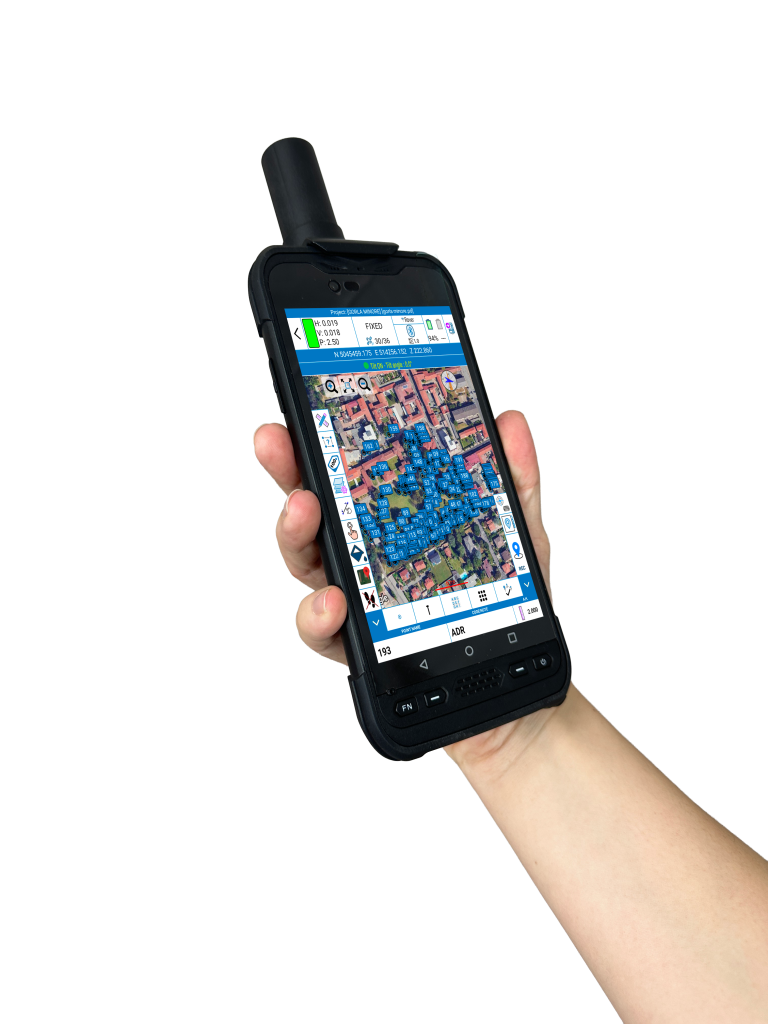

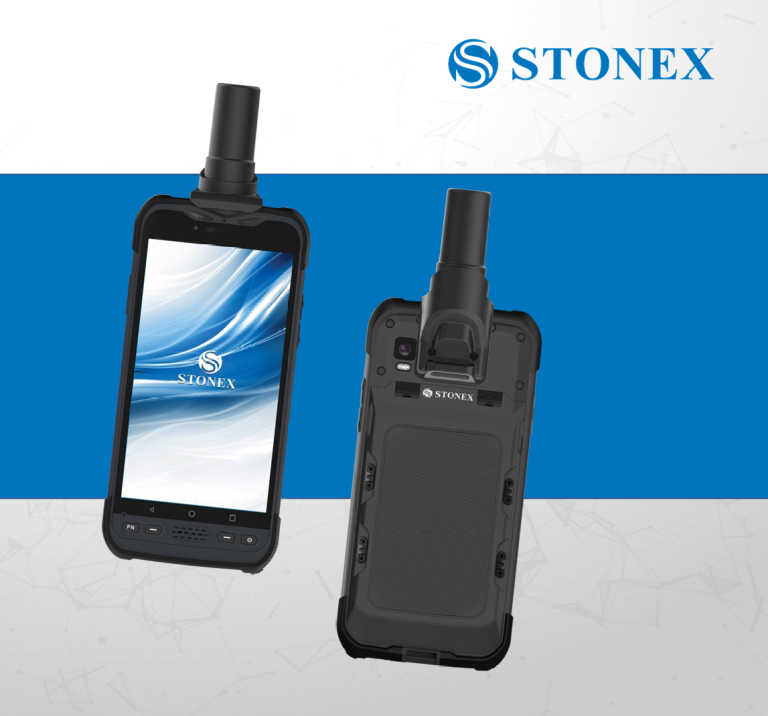

Stonex S70G handheld RTK and PPK receiver

The Stonex S70G is a handheld RTK tablet that is dual frequency and uses 4 Satellite constellations (GPS, Glonass, Galileo and BeiDou) to acheive 2cm accuracy in your hand. The installed CubeA survey software that is preloaded on to the 8-inch tablet has great functionality whilst being extremely easy to use. It will let you load drawings and images for your background map and collect precise positions and other data such as photos in the field. The tablet’s operating system is Android 9 and can be used for many other applications such as sending emails, make a phone call or watch a video.

The S70G can to work in real time through the reception of RTK corrections transmitted by a network of GNSS Reference Stations. It can also record the raw data GNSS data for post processing (PPK) in the office. This allows the operator to work in areas with no mobile phone coverage.

It is supplied with an antenna that connects directly with the 8″ Tablet to give position accuracy of 2cm. It can also be connected to a survey GNSS antenna setup on a 2m survey pole to improve the position accuracy to 1cm when in RTK mode and 5mm when using the PPK method.

STONEX S70G Bundle Kit incl. 184 Channels, 4G modem, WiFi, Bluetooth
The 8″ tablet has a changeable 8,000 mAh battery
S70G Antenna – for the tablet
Power adaptor with charging and interface cable – USB C
Cube-A survey software
Soft carry bag for the S70G and accessories
The price for the Stonex S70G with the equipment and software listed above is $4,800 exGST

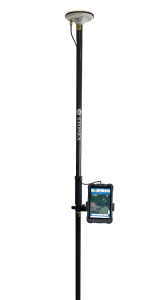

For more accuracy to 1cm in Horizontal; a 2 metre survey pole can be used with an SA65 survey grade dual frequency GNSS antenna can be used.
1 x Stonex SA65 GNSS / dual frequency survey antenna
1 x S70G Antenna cable for A65 antenna
1 x Carbon fibre survey pole 2m, 2 sections with holes for antenna cable.
1x Pole mount for the S70G to be mounted on the pole.
These accessories are $1,800 exGST.

Optional Stonex GIS module to use with the CubeA software is $200 exGST.
Spare replaceable Lithium Ion Battery is $200 exGST

Stonex S580 GNSS antenna for RTK and GIS surveying

The S580 is a compact light GNSS receiver that achieves centimetre level accuracy in horizontal and vertical. The S580 is a dual frequency receiver that tracks the GPS, Glonass, BeiDou, Galileo and QZSS satellite constellations.It makes an ideal receiver for GIS data acquisition and surveying in a marine environment. The included arm strap is ideal for freedom of movement and to keep hands free.

The S580 can communicate with an external device such as a tablet, smartphone or PC through Bluetooth or Wi-Fi. Thanks to the internal web interface the receiver can be configured and prepared to receive RTK corrections over the internet to obtain centimetre position accuracy. It can connect to a Stonex rugged tablet listed below using their survey App called CubeA or it can be setup to use your own software or App. The rubber non slip housing makes it water resistant and dust proof. It has a 20 hour battery life and is rated to IP67, and resists a 1.2m hard drop on to concrete.

The S580 kit includes an AC charger, pole mount adapter and the armband strap is $4,600 exGST
The Stonex UT12P 6″ tablet with their Cube-A surveying App installed is  $2,000 exGST  or
The Stonex UT32 8″ tablet with Cube-A surveying App installed for  $2,300 exGST

Stonex SC400A GNSS receiver

SC400A GNSS CORS Receiver

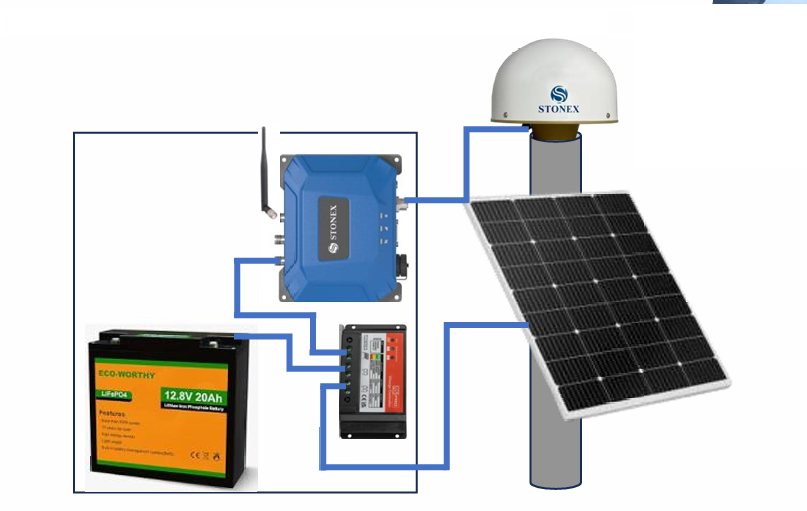

The SC400A is a multipurpose GNSS receiver. It can be used for static applications as a Continuously Operating Reference station,(CORS), or as the base station for general GNSS land surveying. It can also be coupled to a Bluetooth tablet and used as a rover for Real Time Kinematic surveys (RTK).

This GNSS receiver is enclosed in a very strong compact case. It has WiFi, Bluetooth and a 9 pin serial port for easy connectivity. It could easily be worn on a belt making easy to use both hands in the field.

The SC400A with an AC power supply and 12 volt DC power lead is $6,000 exGST
A SA85 Dual frequency GNSS antenna to suit the SC400A is $1,000 exGST
12 volt power lead with connector can be made up to suit the application approx. $150 exGST
The Stonex UT12P 6″ tablet with their Cube-A surveying App preloaded makes an ideal interface / data collector for  $2,100 exGST
A Seco GPS backpack with an adjustable cam-lock antenna pole is $380 exGST
A Lithium Ion Battery to power the SC400A is $350 exGST
A Battery charger is $100 exGST
3m coaxial antenna cables are $50 exGST

Stonex SC600+ GNSS receiver

SC600+ GNSS Receiver

Multipurpose GNSS Receiver
The new SC600+  is a great multipurpose GNSS receiver. It can be used for static applications such as CORS, or as a monitoring station, or as a base station. As a roving system it is great for kinematic surveys, for Machine Control, Precision Farming and Bathymetric surveys when correct heading is important.

Heading Functionality
The receiver has the possibility to connect two external GNSS antennas, the first provides the GNSS position while the second gives the direction of movement; this allows the SC600+ to be used in all those applications where reliability, accuracy and positioning solutions are required.

Maximum Connection
The SC600+ comes standard with all necessary connectivity. It has an integrated UHF radio and a 4G GSM modem with SIM card slot for RTK surveys achieving 1cm accuracy soon after startup. The operator can easily connect to the unit by Bluetooth or Wi-Fi using a simple and intuitive Web UI. The operator can also choose to use the Stonex’s Surveying App on an android tablet.

The SC600A with an AC power supply and 12 volt DC power lead is $7,500 exGST
SA85 Dual frequency GNSS antenna to suit the SC600A is $1,150 exGST;  2 x SA65 antenna (for heading) is $2,100 exGST
12 volt power leads can be made up to suit the customer.
The Stonex UT12P 6″ tablet with their Cube-A surveying App makes an ideal interface / data collector for  $2,100 exGST

Stonex SC600+ GNSS receiver

The  Stonex S850+ include an internal UHF radio and IMU. It is a 800 channel receiver with dual frequency using 6 satellite constellations (GPS, Glonass, Galileo, BeiDou, QZSS and IRNSS) as well as SBAS to give maximum satellite coverage when working in narrow open cut mines or among tall buildings. The receiver can also be configured using its WebUI with a WiFi connection to any computer or tablet that uses a web browser.

The S850A can receive the Atlas L-band signal. The GNSS Global Correction Service for precise positioning around the world. ATLAS is an exclusive PPP technology that provides real-time, centimetre-level positions. The PPP (Precise point positioning) is a positioning technique that removes or models GNSS system errors to provide a high level of position accuracy from a single receiver. Once the corrections are calculated, they are delivered to the end user via satellite through an L-Band signal.

It is also capable of RTK surveys using its UHF radio or its 4G modem as the communication link. The CubeA survey App that is installed on the Stonex UT12P tablet has great functionality whilst still being extremely easy to use. With an internet connection an aerial image of your work area can be displayed and recorded data can be simply exported by email from the App.

There is no need for a RTK base station. The Atlas L-Band correction data is continuously transmitted via a communication satellite to deliver global coverage. Click here for Atlas subscription costs.

STONEX S850A / S850+ with UHF radio,  IMU comes with the following.
UHF radio with antenna – compatible with all radio protocols and formats.
UniStrong UT12P ruggedized 6″ tablet with 8,000 mAh battery
Cube-A survey software
Carbon fibre 2m survey pole
Mounting bracket and cradle for the UT10 tablet to the pole
Power Adaptor with interface and charging cables,
Hard shell case for S850A receiver and UT10 tablet.

The S850A bundled kit with UHF radio and IMU and the above listed accessories is $12,500 exGST.
The S850A with yellow shipping case, USB charger and cable is $10,000 exGST.

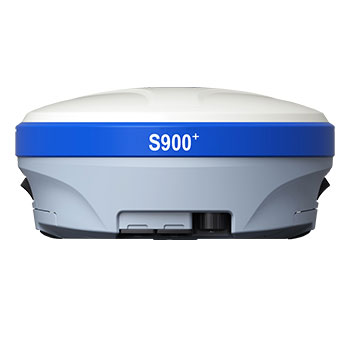

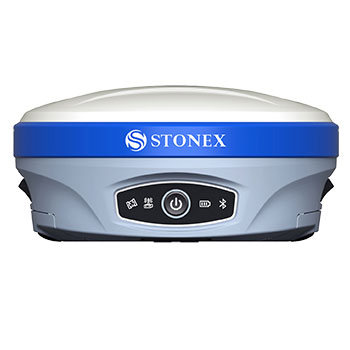

Stonex S900A GNSS receiver – Atlas L-Band capable

Stonex S900A is a compact, high-performance, 800 channel GNSS receiver that is looks similar to the S850A but includes two rechargeable battery slots. The 2 batteries have charge indicators and there is a power display on the front panel. It uses all 6 satellite constellations (GPS, Glonass, Galileo, BeiDou, QZSS and IRNSS) that gives maximum satellite coverage when working in narrow open cut mines or amongst tall buildings. It has multiple communications ports to output data to a computer or instrument. The receiver can also be configured on any computer or tablet or phone using an open Web User Interface. It has an IMU to give correct for position and height when the pole is not able to be kept level.

The S900A can receive the Atlas L-band signal. The GNSS Global Correction Service for precise positioning around the world. ATLAS is an exclusive PPP technology that provides real-time, centimetre-level positions. The PPP (Precise point positioning) is a positioning technique that removes or models GNSS system errors to provide a high level of position accuracy from a single receiver. Once the corrections are calculated, they are delivered to the end user via satellite through an L-Band signal.

It is also capable of RTK surveys using its UHF radio or its 4G modem as the communications link. The CubeA survey App that is installed on the UT12P  Android tablet has great functionality whilst still being extremely easy to use. With an internet connection an aerial image of your work area can be displayed and recorded data can be simply exported by email from the App.

There is no need for a RTK base station or a RTK network. The Atlas L-Band correction data is continuously transmitted via a communication satellite to deliver global coverage. Click here for Atlas subscription costs.

STONEX S900A with the UHF radio and IMU that includes the following.
UHF radio antenna – compatible with all radio protocols and formats.
2 x Li-Ion battery 7.4V – 3400 mAh – with inbuilt charge indicator
Desktop charger for the two batteries
Multi-port interface cable and USB C interface cable
UniStrong UT12P ruggedized 6″ tablet with 8,000 mAh battery
Cube-A survey software
2m Carbon fibre surve pole
Mounting bracket and cradle for the UT12P tablet to the pole
Power Adaptor with interface and charging cables,
Hard shell case for the S900A receiver and UT12P tablet.

The S900A bundled kit with above listed accessories is $14,250 exGST
The S900A  with yellow shipping case, desk top charger and two batteries is $11,500 exGST
Spare Li-Ion battery 7.4V – 3400 mAh – with inbuilt charge indicator are $325 exGST

Stonex S980A GNSS receiver with 5 Watt radio

Stonex S980A has a 5-watt internal radio and is a compact, high-performance, 800 channel GNSS receiver that has a long life internal Lithium Ion battery. It has a large colour display panel for easy viewing of the receivers status.  It uses all 6 satellite constellations (GPS, Glonass, Galileo, BeiDou, QZSS and IRNSS) that gives maximum satellite coverage when working in narrow open cut mines or among tall buildings. It has multiple communications ports to output data to a computer or instrument. The receiver can also be configured on any computer or tablet or phone using an open Web User Interface. It has an IMU to give correct position and height when the pole is not able to be kept level. It has a port for an external GNSS antenna if ever required.

The S980A can receive the Atlas L-band signal. The GNSS Global Correction Service for precise positioning around the world. ATLAS is an exclusive PPP technology that provides real-time, centimeter-level positions. The PPP (Precise point positioning) is a positioning technique that removes or models GNSS system errors to provide a high level of position accuracy from a single receiver. Once the corrections are calculated, they are delivered to the end user via satellite through an L-Band signal.

The S980A is ideal as a the base station using its 5-watt radio for long range transmission. It is equally good to use as a roving GNSS receiver. It’s 4G modem can be used to connect to CORS reference stations spread around Australia and many other countries. The CubeA survey software that is used for the surveying application is preloaded on to the UT12P tablet has great functionality whilst being extremely easy to use.

The S980A does not require a local RTK base station or a CORS network to get accurate positioning. The Atlas L-Band correction data is continuously transmitted via a communication satellite to deliver global coverage. Click here for Atlas subscription costs.

STONEX S980A with powerful 5 watt UHF radio bundle includes the following.
5 watt UHF radio and antenna that is compatible with all radio protocols and formats.
Power adapter and USB C cable and a PC / controller interface cable.
Heavy Duty Tripod
Optical Tribrach
Rotating Tribrach Adapter
Power cable from External battery to the GNSS receiver
Hard shell case for the S980A receiver and Tribrach.

The S980A bundled kit with the above accessories is $13,900 exGST
The S980A with yellow shipping case, charger and cable is $12,750 exGST.

Accessories when setup as Base Station
Heavy Duty Tripod is $300 ex GST
Optical Tribrach is $250 ex GST
Rotating Tribrach Adapter is $90 ex GST.
30cm lengths of aluminum pole are $50 ex GST each
Lithium Ion Battery 77 Watt hours for additional power source when radio is running is $350 ex GST
Power cable from External battery to the GNSS receiver $200 ex GST.

Stonex S990A GNSS receiver with IMU and radio

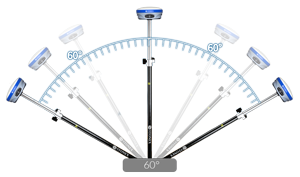

Stonex S990A has an IMU that allows the survey pole to be tilted up to 60 degrees without greatly affecting the measurement. It is a compact, high-performance, 800 channel GNSS receiver that has a long life internal Lithium Ion battery. It has a large colour display panel for easy viewing of the receivers status.  It uses all 6 satellite constellations (GPS, Glonass, Galileo, BeiDou, QZSS and IRNSS) that gives maximum satellite coverage when working in narrow open cut mines or amongst tall buildings. It has multiple communications ports to output data to a computer or instrument. The receiver can also be configured on any computer or tablet or phone using an open Web User Interface. It has an IMU to give correct positional accuracy when the pole is not able to be levelled.

The S990A can receive the Atlas L-band signal. The GNSS Global Correction Service for precise positioning around the world. ATLAS is an exclusive PPP technology that provides real-time, centimetre-level positions. The PPP (Precise point positioning) is a positioning technique that removes or models GNSS system errors to provide a high level of position accuracy from a single receiver. Once the corrections are calculated, they are delivered to the end user via satellite through an L-Band signal.

It is also capable of RTK surveys using its UHF radio or its 4G modem as the communications link. The CubeA survey software that is preloaded on to the UT10 tablet has great functionality whilst being extremely easy to use.

The S990A does not require a local RTK base station or a CORS network to get accurate positioning. The Atlas L-Band correction data is continuously transmitted via a communication satellite to deliver global coverage. Click here for Atlas subscription costs.

STONEX S990A with IMU and radio includes the following.
IMU optioned for tilted measurements up to 60 degrees
UHF radio with antenna – compatible with all radio protocols and formats.
Power adaptor and charger cable.
PC  serial interface cables.
UniStrong UT10 ruggedized 6″ tablet with 8,000 mAh battery.
Cube-A survey software
Carbon fibre 2m pole
Mounting bracket and cradle for the UT10 tablet to the pole
Hard shell case for the S990A receiver and UT10 tablet.

The S990A bundled kit with the above accessories is $13,000 exGST
The S990A with charger and cable is $10,750 exGST
